Comes with flexi-drive shaft and 219 accessories, removable handle, LCD display (variable, electronic speed control), "Dremel" knockoff. See Posts #5 and #7 for (aesthetic) comparisons to Dremel models.
I've seen comments on HUKD that you can get an extra 10% off* at the till with a voucher from a promo magazine in store - can't vouch for this, though. 10% off takes the price to £27.
• Drills, cuts, sharpens, cleans, polishes and engraves most surfaces
• Ideal hobby, craft and restoration tool
• Removable handle for additional support and control
• Digital speed selector via up/down buttons
• Speed is displayed on LCD display, in rpm
• Variable speed control: 8,000 - 35,000 rpm (in increments of 1,000)
• 1 mm - 3.2 mm collet size
• Spindle lock to easily change accessories
• Includes pen grip flexi-drive shaft – ideal for intricate work
• Includes 219 accessories for multipurpose use
• Supplied in handy storage case
Was £49.99.
Click & Collect available at your local store or...
Free delivery within 3-5 Days for all orders over £10. Order online by 6pm.
Next working Day Anytime Delivery £5.99. Order online by 6pm.
Named Day or Timed Delivery Prices start from £5.99, available options displayed at the delivery page on the checkout.
Shutl Timed Delivery available - prices variable depending on location and distance.
AndiTails (thanks) says "4% Quidco if ordering online, too."
Model No: N17QN
Drills, cuts, sharpens, cleans, polishes and engraves most surfaces
Ideal hobby, craft and restoration tool
Removable handle for additional support and control
Technical specifications:
Collet size: 1mm - 3.2mm
Voltage: V 230 ac
Frequency: 50Hz
Power rating: 170W
Weight: 736g
Cordless: No
Variable Speed: Yes Type: Rotary Tool
Motor Voltage: 230V
Minimum to Maximum RPM 8,000 to 35,000rpm
Colour: Black and grey
Product Width: 45mm
Product Length: 250m
Product Height: 48mm
Product Weight: 650g
Contents:
1 x plastic storage box
1 x 170W rotary tool
35 x regular cut-off wheels (24mm x 6mm)
30 x heavy duty cut-off wheels (24mm x 8mm)
36 x sanding discs (180 grit)
36 x sanding discs (320 grit)
1 x polishing compound
3 x brass brushes
3 x steel brushes
1 x pen nylon brush
1 x flap wheel (80 grit)
10 x grinding stones
1 x mandrel for sanding bands (12.7mm x 12.7mm)
1 x mandrel for sanding bands (6.35mm x 12.7mm)
6 x drill bits (2 each of 1.5mm, 3mm and 3.2mm)
1 x cloth wheel (?25.4 x 4.7mm)
1 x felt wheel (?25.4 x 6.7mm)
1 x rubber emery wheel (?22 x 4mm)
1 x felt wheel point (?9.5 x 19mm)
4 x felt wheel (?12.7 x 6mm)
6 x aluminium oxide grinding wheels (?20 x 3.2mm)
6 x silicon carbide grinding wheels (?20 x 3.2mm)
1 x whet stone (25 x 9 x 9mm)
5 x diamond grinders
3 x mandrels for cut-off wheels
1 x mandrel for felt wheels
1 x hss cutters
1 x spindle lock for flexible shaft
1 x spanner
4 x collets (1pc x 1.5mm, 2pcs x 2.3mm and 1pc x 3.2mm)
4 x sanding bands (12.7mm x 12.7mm)
8 x sanding bands (6.35mm x 12.7mm)
5 x cut-off wheel fibre glass (?32 x 1mm)
1 x flexible shaft
1 x removable handle
Model No: N17QN
Drills, cuts, sharpens, cleans, polishes and engraves most surfaces
Ideal hobby, craft and restoration tool
Removable handle for additional support and control
Technical specifications:
Collet size: 1mm - 3.2mm
Voltage: V 230 ac
Frequency: 50Hz
Power rating: 170W
Weight: 736g
Cordless: No
Variable Speed: Yes Type: Rotary Tool
Motor Voltage: 230V
Minimum to Maximum RPM 8,000 to 35,000rpm
Colour: Black and grey
Product Width: 45mm
Product Length: 250m
Product Height: 48mm
Product Weight: 650g
Contents:
1 x plastic storage box
1 x 170W rotary tool
35 x regular cut-off wheels (24mm x 6mm)
30 x heavy duty cut-off wheels (24mm x 8mm)
36 x sanding discs (180 grit)
36 x sanding discs (320 grit)
1 x polishing compound
3 x brass brushes
3 x steel brushes
1 x pen nylon brush
1 x flap wheel (80 grit)
10 x grinding stones
1 x mandrel for sanding bands (12.7mm x 12.7mm)
1 x mandrel for sanding bands (6.35mm x 12.7mm)
6 x drill bits (2 each of 1.5mm, 3mm and 3.2mm)
1 x cloth wheel (?25.4 x 4.7mm)
1 x felt wheel (?25.4 x 6.7mm)
1 x rubber emery wheel (?22 x 4mm)
1 x felt wheel point (?9.5 x 19mm)
4 x felt wheel (?12.7 x 6mm)
6 x aluminium oxide grinding wheels (?20 x 3.2mm)
6 x silicon carbide grinding wheels (?20 x 3.2mm)
1 x whet stone (25 x 9 x 9mm)
5 x diamond grinders
3 x mandrels for cut-off wheels
1 x mandrel for felt wheels
1 x hss cutters
1 x spindle lock for flexible shaft
1 x spanner
4 x collets (1pc x 1.5mm, 2pcs x 2.3mm and 1pc x 3.2mm)
4 x sanding bands (12.7mm x 12.7mm)
8 x sanding bands (6.35mm x 12.7mm)
5 x cut-off wheel fibre glass (?32 x 1mm)
1 x flexible shaft
1 x removable handle
Versatile tool for drilling, milling, engraving, polishing, cleaning, cutting and grinding
Powerful motor with variable speed control
With a highly flexible shaft for extra precision and spindle-lock for swift and easy attachment change
Includes 42 attachments, stand with clamping device, and routing base
Adjustable no-load speed (rpm): 10,000 – 40,000
Collets Ø (mm): 2.4 / 3.2
Power cable length (m): 3
I did ask on the Maplin page (Q&A section) if the brushes in this are replaceable - to be honest, it is such a mine of misinformation I'm not sure I trust their reply - seems to be staff members who look up manufacturers' manuals rather than actual users with real world experience.
Any owners of this care to confirm for me, please?
louiselouise
15 May 161#5
The Maplin model looks similar to an older Dremel 400 XPR Digital's display below, or even a Professional Dremel
The Maplin N17QN's digital display looks like this - Variable speed 8,000 - 35,000 rpm (like the aforementioned Dremel 400 XPR Digital/Professional models, displays in increments of 1,000). Also, wondering if the circular section just above the digital display allows you to change the carbon brushes (?).
Here's a real Dremel (Dremel 4000 in this case) with the additional Detailer's Grip Attachment handle, for comparison's sake:

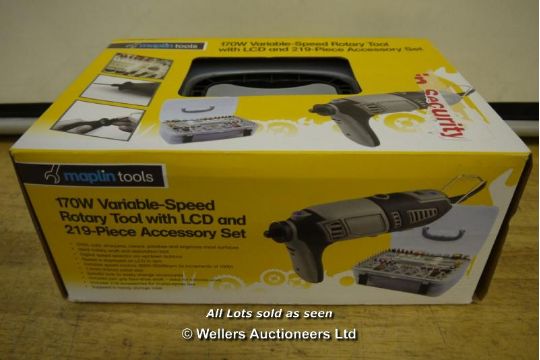

and the Maplin tool:

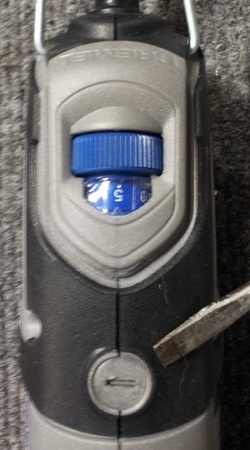

As for removing the brushes, here's how to do it with the Dremel 4000, assume the Maplin rotary tool will be similar?
1. Unscrew the brush cap (there are two) just below the variable speed control
2. Grabbing the small brass spring, pull the worn brush from the housing
3. Place the new brush in the housing
4. Replace brush cap
5. Repeat for other side
6. Run for 5-10 minutes with no load to wear them in
nokmondoo
17 May 16#8
Does anyone know of a cordless multi tool that's any good?
louiselouise to nokmondoo
17 May 161#12
The cordless models don't have as much grunt and tend not to be recommended, but you probably know that already :smiley:
